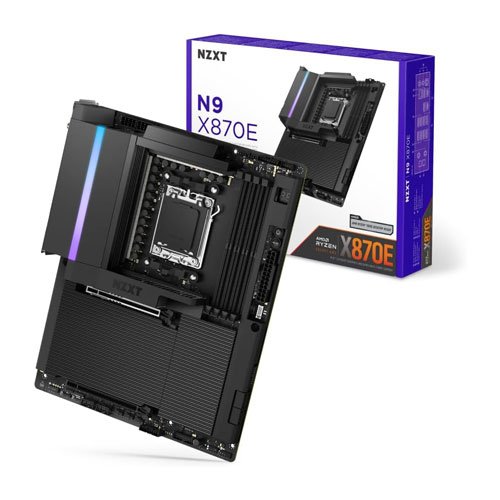

NZXT N9 X870E BLACK RGB WIFI ATX MOTHERBOARD N9-X87XT-B1
LKR182,000.00
03 Years Warranty
Description

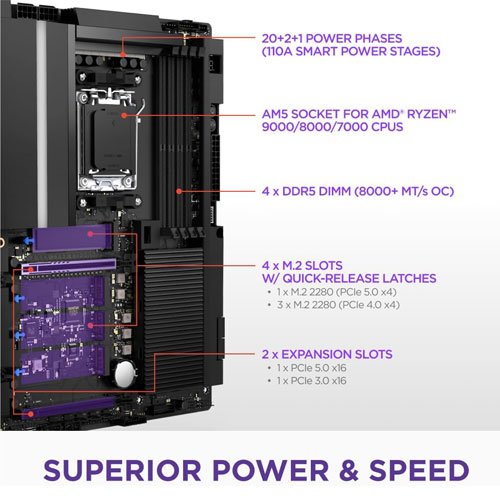

| CPU | AMD Socket AM5 for AMD® Ryzen™ 9000, 8000, and 7000 series processors |
| Chipset | AMD® X870E |
| Memory | |
| DIMM Slots | 4 x DDR5 only |
| Memory Architecture | Dual-Channel |
| Extreme Memory Profile (XMP) | Supported |
| EXTended Profiles for Overclocking (EXPO) | Supported |
| OC Frequency | Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information. |
| Expansion Slots | |
| PCIe 5.0 ×16 slot (PCIEX16_1) | 1 |
| PCIe 3.0 ×16 slot (PCIEX16_2) | 1 (×2 mode) |
| M.2 Socket (Key E) | 1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi module) |
| Storage | |
| M.2_1 | Type 2280 (PCIe 5.0 ×4 mode) |
| M.2_2 | Type 2280 (PCIe 4.0 ×4 mode) |
| M.2_3 | Type 2280 (PCIe 4.0 ×4 mode) |
| M.2_4 | Type 2280 (PCIe 4.0 ×4 mode) |
| SATA 6Gb/s ports | 4 |
| LAN | Realtek® 5.0G LAN |
| Wireless | |
| Tri-Band Wi-Fi 7 | Supported |
| Bluetooth | v5.4 |
| Audio | Realtek® ALC4082 Audio Codec |

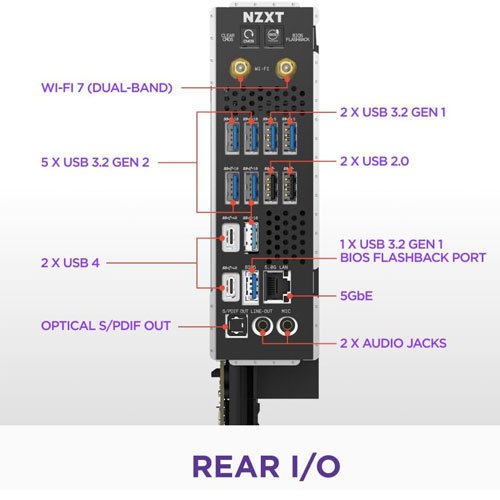

| Rear I/O | |
| Wireless antenna SMA connectors | 2 |
| USB 4 ports | 2 |
| USB 3.2 Gen 2 ports | 5 |
| USB 3.2 Gen 1 Type-A® ports | 3 |
| USB 2.0 port | 2 |
| Clear CMOS button | 1 |
| LAN (RJ45) port | 1 |
| Audio jacks | 2 |
| Optical S/PDIF out port | 1 |
| Internal I/O | |
| 24-pin ATX power connector | 1 |
| 8-pin ATX 12V power connector | 2 |
| 4-pin CPU_FAN connector | 1 |
| 4-pin AIO_PUMP connector | 1 |
| 4-pin SYS_FAN connectors | 3 |
| NZXT RGB LED connector | 1 |
| 5V ARGB LED connectors | 2 |
| NZXT 8-pin PWM connectors | 2 |
| USB 2.0 header | 2 (Up to 4 USB 2.0 ports) |
| USB 3.2 Gen1 header | 2 (Up to 4 USB 3.2 Gen 1 ports) |
| USB 3.2 Gen2x2 front panel header | 1 (For USB Type-C) |
| Front panel audio connector | 1 |
| Power button | 1 |
| Reset button | 1 |
| Post LEDs | 1 |
| Digital Debug LED | 1 |
| General | |
| Operating System | Windows® 11/10 64-bit |
| Form Factor | ATX |
