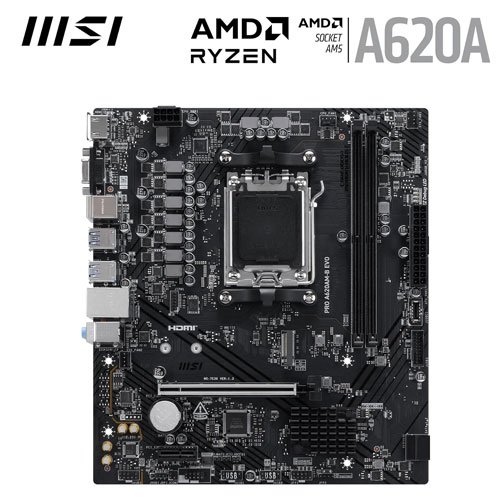

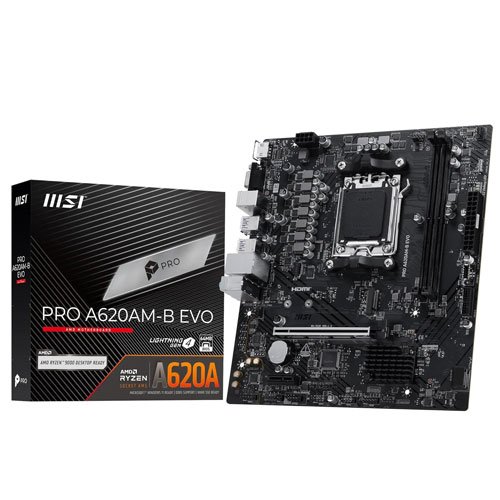

MSI PRO A620AM B EVO MOTHERBOARD 911-7E36-001
LKR38,500.00
03 Years Warranty
Description
| Chipset | AMD A620A |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 6800 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 6800+ MT/s | |
| • 1DPC 2R Max speed up to 6000+ MT/s | |
| Supports AMD POR Speed and JEDEC Speed | |
| Supports Memory Overclocking and AMD EXPO™ | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports CUDIMM, Clock Driver bypass mode only* | |
| * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. | |
| • The DIMM slots on this motherboard only have single-sided latches. | |
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/ | |
| Onboard Graphics | 1x HDMI™ |
| Support HDMITM 2.1, maximum resolution of 4K 60Hz* | |
| 1x VGA | |
| Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 1x PCI-E x16 slot |
| • Supports x16 (For Ryzen™ 9000 and 7000 Series processors) | |
| • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) | |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 1x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 2x SATA 6G | |
| M2_1 slot | |
| • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) | |
| • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) | |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices |

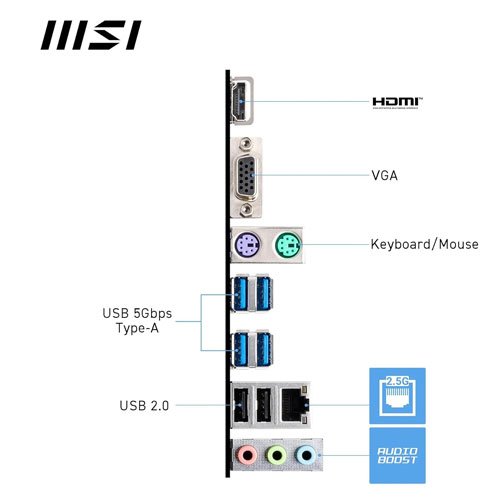

| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 4x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| 1x USB 5Gbps Type C (Front) | |
| LAN | Realtek® RTL8125 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 5Gbps Type C ports | |
| LED FEATURE | 4x EZ Debug LED |
| 1x EZ Memory Detection LED |
