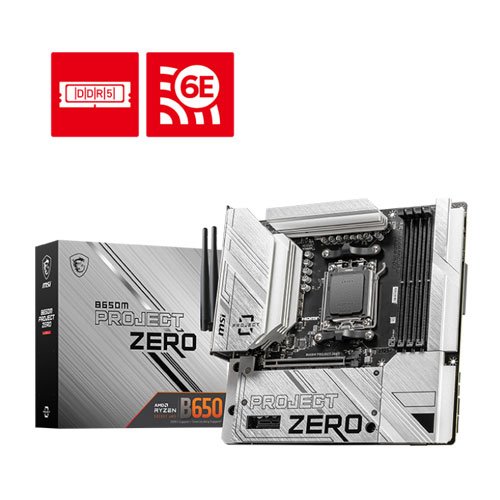

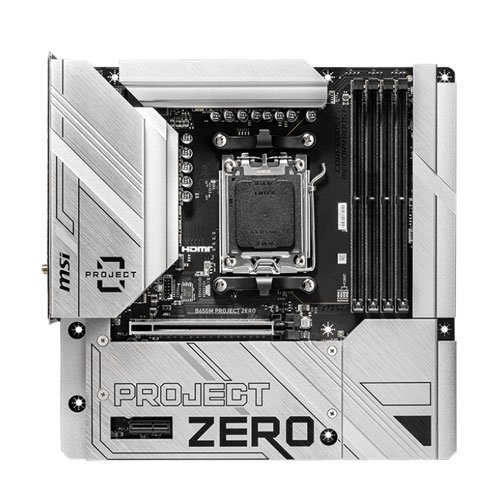

MSI B650M PROJECT ZERO MOTHERBOARD D5 911-7E09-010
LKR88,000.00
03 Years Warranty
Description
Description
| hipset | AMD B650 | ||||||||||
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors | ||||||||||
| Socket AM5 | |||||||||||
| Memory | 4x DDR5, Maximum Memory Capacity 256GB | ||||||||||
| Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |||||||||||
| Max. overclocking frequency: | |||||||||||
| • 1DPC 1R Max speed up to 7600+ MHz | |||||||||||
| • 1DPC 2R Max speed up to 6400+ MHz | |||||||||||
| • 2DPC 1R Max speed up to 6400+ MHz | |||||||||||
| • 2DPC 2R Max speed up to 5400+ MHz | |||||||||||
| Onboard Graphics | 1x HDMI™ | ||||||||||
| Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* | |||||||||||
| 1x DisplayPort | |||||||||||
| Support DP 1.4, maximum resolution of 4K 60Hz* | |||||||||||
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |||||||||||
| Slot | 1x PCI-E x16 slot | ||||||||||
| • Supports x16 (For Ryzen™ 9000 and 7000 Series processors) | |||||||||||
| • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) | |||||||||||
| • Supports x4 (For Ryzen™ 5 8500G processor) | |||||||||||
| 1x PCI-E x1 slot | |||||||||||
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |||||||||||
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |||||||||||
| Audio | Realtek® ALC897 Codec | ||||||||||
| 7.1-Channel High Definition Audio | |||||||||||
| Supports up to 32-Bit/384 kHz playback on front panel | |||||||||||
| Storage | 2x M.2 | ||||||||||
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |||||||||||
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |||||||||||
| 4x SATA 6G | |||||||||||
| • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed | |||||||||||
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* | ||||||||||
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |||||||||||
| * SATA_A1_A2 do not support RAID function. | |||||||||||
| USB | 2x USB 2.0 (Rear) | ||||||||||
| 4x USB 2.0 (Front) | |||||||||||
| 2x USB 5Gbps Type A (Rear) | |||||||||||
| 2x USB 5Gbps Type A (Front) | |||||||||||
| 3x USB 10Gbps Type A (Rear) | |||||||||||
| 1x USB 10Gbps Type C (Rear) | |||||||||||
| 1x USB 10Gbps Type C (Front) | |||||||||||
| 1x USB 20Gbps Type C (Rear) | |||||||||||
| LAN | Realtek® RTL8125BG 2.5Gbps LAN | ||||||||||
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E | ||||||||||
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |||||||||||
| Supports MU-MIMO TX/RX | |||||||||||
| Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |||||||||||
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |||||||||||
| Supports Bluetooth® 5.3** | |||||||||||
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. | |||||||||||
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | |||||||||||
| Internal IO | 1x Power Connector(ATX_PWR) | ||||||||||
| 2x Power Connector(CPU_PWR) | |||||||||||
| 1x CPU Fan | |||||||||||
| 1x Pump Fan | |||||||||||
| 3x System Fan | |||||||||||
| 2x Front Panel (JFP) | |||||||||||
| 1x Chassis Intrusion (JCI) | |||||||||||
| 1x Front Audio (JAUD) | |||||||||||
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |||||||||||
| 1x TPM pin header(Support TPM 2.0) | |||||||||||
| 4x USB 2.0 ports | |||||||||||
| 2x USB 5Gbps Type A ports | |||||||||||
| 1x USB 10Gbps Type C ports | |||||||||||
| LED FEATURE | 4x EZ Debug LED | ||||||||||

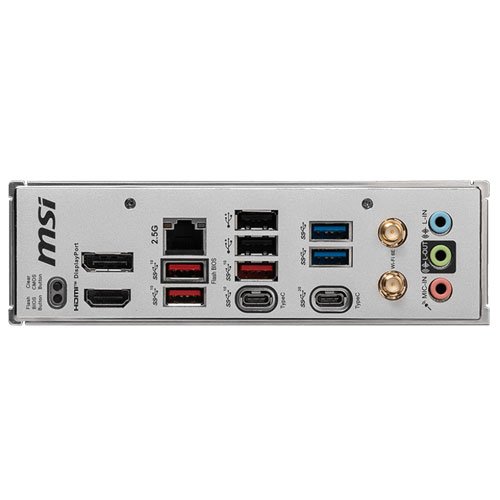

| BACK PANEL PORTS | DisplayPort | ||||||||||
| 2.5G LAN | |||||||||||
| USB 2.0 | |||||||||||
| USB 5Gbps (Type-A) | |||||||||||
| Wi-Fi / Bluetooth | |||||||||||
| Audio connectors | |||||||||||
| Flash BIOS Button | |||||||||||
| Clear CMOS Button | |||||||||||
| HDMI™ | |||||||||||
| USB 10Gbps (Type-A) | |||||||||||
| USB 10Gbps (Type-C) | |||||||||||
| USB 20Gbps (Type-C) | |||||||||||
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit | ||||||||||
| PCB Info | mATX | ||||||||||
| 243.84mmx243.84mm | |||||||||||
