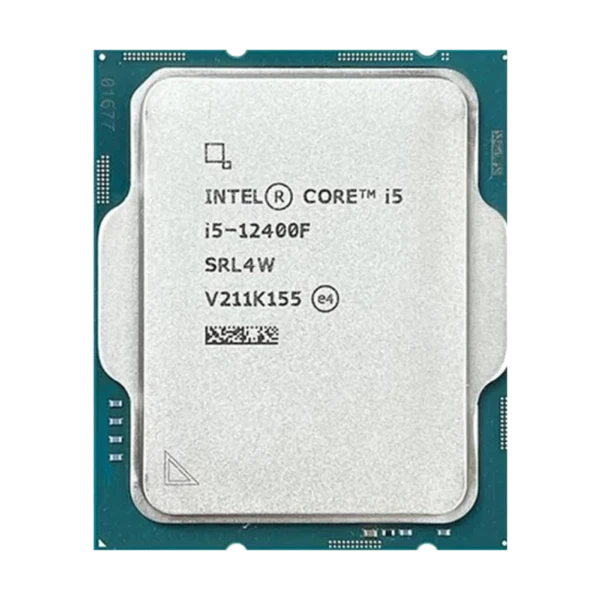

INTEL CORE I5 12400F TRAY PROCESSOR BX8071512400F

Description

Total Cores 6
# of Performance-cores6
# of Efficient-cores0
Total Threads 12
Max Turbo Frequency 4.40 GHz
Performance-core Max Turbo Frequency 4.40 GHz
Performance-core Base Frequency2.50 GHz
Cache 18 MB Intel® Smart Cache
Total L2 Cache7.5 MB
Processor Base Power 65 W
Maximum Turbo Power 117 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes 20
Package Specifications
Max CPU Configuration1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread DirectorNo
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Optane™ Memory Supported ‡ Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ No
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS GuardYes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBE) Yes

Intel® Control-Flow Enforcement Technology Yes
