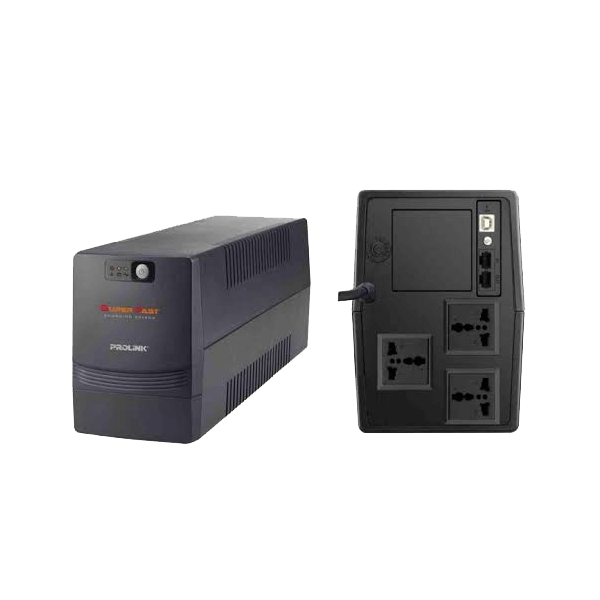

PROLINK PRO1201SFC 1200VA

Capacity
1200VA
Input Voltage Range
220 – 240V ± 5%
Frequency
50Hz/60Hz (Auto-sensing)
Phase
Single + GND
Output Voltage Range
230VAC +12% -14%
Battery Mode
230VAC +10% -10%
Frequency
50Hz ± 1% (Battery Mode)
Waveform
– Simulated Sine Wave (Battery Mode)
– Sine Wave (AC Mode)
Transfer Time
2ms typical
Battery Type
12V/8.2AH – 2pcs
Backup Time
8 – 30 minutes depending on load
Recharge Time
2 – 4 hours recover to 90% capacity
Protection / Monitoring Short Circuit Protection
Yes (Line Mode and Battery Mode)
Surge Protection
Yes
Alarm
Audible & Visual
UPS Protection
Load auto sensing and abnormal protection
Overload Protection
– Line mode : 100 – 120% 5 mins change to fault mode >120% change to fault mode shutdown immediately
– Battery mode : 100 – 110% alarm & shutdown in 10 secs >120% shutdown immediately
Intelligent Battery Management
Prevent overcharging of battery
Protect battery and prolong battery life
Interface Interface*
RJ11
AC fault, battery low, shutdown UPS
General Software
Support Windows® 2000/ 2003/ XP/ Vista/ 2008/ 7, Linux, Unix, and Mac
Noise Level
<40dB
Temperature
0°C – 40°C
Humidity
0 – 90%
Power Factor
Up to 0.7
Built in AVR
TRUE Full AVR (3 steps)
Physical Dimension (mm) D x W × H
320*130*182mm (product only)
390*192*275mm (with box)
Net Weight (kgs)
8.6KG (product only)
9KG(with box)
Package Content
1 x PROLiNK PRO1200SFC
1 x Quick Installation Guide (QIG)

2 YEARS WARRANTY(BATTERY 1 YEAR)
