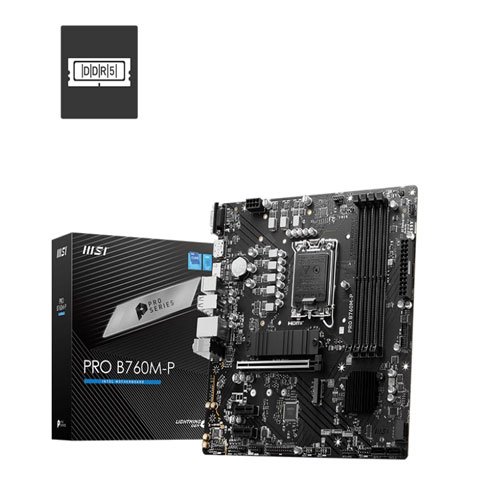

MSI PRO B760M P DDR5 MOTHERBOARD 911-7E02-030
LKR49,500.00
03 Years Warranty
Description
| CHIPSET | INTEL B760 | |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors | |
| LGA 1700 | ||
| MEMORY | 4x DDR5, Maximum Memory Capacity 192GB | |
| Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | ||
| Max. overclocking frequency: | ||
| • 1DPC 1R Max speed up to 6800+ MHz | ||
| • 1DPC 2R Max speed up to 6400+ MHz | ||
| • 2DPC 1R Max speed up to 6000+ MHz | ||
| • 2DPC 2R Max speed up to 5600+ MHz | ||
| Supports Intel® XMP 3.0 OC | ||
| Supports Dual-Controller Dual-Channel mode | ||
| Supports non-ECC, un-buffered memory | ||
| ONBOARD GRAPHICS | 1x HDMI™ | |
| Support HDMI™ 1.4, maximum resolution of 4K 30Hz* | ||
| 1x DisplayPort | ||
| Support DP 1.4, maximum resolution of 4K 60Hz* | ||
| 1x VGA | ||
| Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz | ||
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | ||
| SLOT | 1x PCI-E x16 slot | |
| 2x PCI-E x1 slot | ||
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | ||
| PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) | ||
| PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) | ||
| STORAGE | 2x M.2 | |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | ||
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | ||
| 4x SATA 6G | ||
| * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | ||
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| USB | 4x USB 2.0 (Rear) | |
| 4x USB 2.0 (Front) | ||
| 1x USB 3.2 Gen1 Type A (Rear) | ||
| 2x USB 3.2 Gen1 Type A (Front) | ||
| 1x USB 3.2 Gen2 Type C (Rear) | ||
| LAN | Realtek® RTL8111H Gigabit LAN | |
| AUDIO | Realtek® ALC897 Codec | |
| 7.1-Channel High Definition Audio | ||
| INTERNAL IO | 1x Power Connector(ATX_PWR) | |
| 1x Power Connector(CPU_PWR) | ||
| 1x CPU Fan | ||
| 2x System Fan | ||
| 2x Front Panel (JFP) | ||
| 1x Chassis Intrusion (JCI) | ||
| 1x Front Audio (JAUD) | ||
| 1x Printer Port (JLPT) | ||
| 1x Com Port (JCOM) | ||
| 1x RGB LED connector(JRGB) | ||
| 1x TPM pin header(Support TPM 2.0) | ||
| 4x USB 2.0 ports | ||
| 2x USB 3.2 Gen1 Type A ports |
