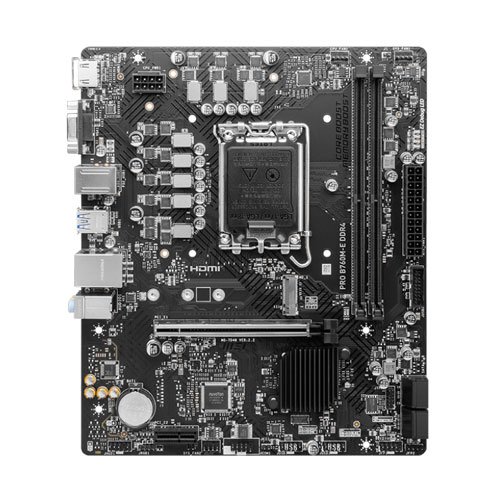

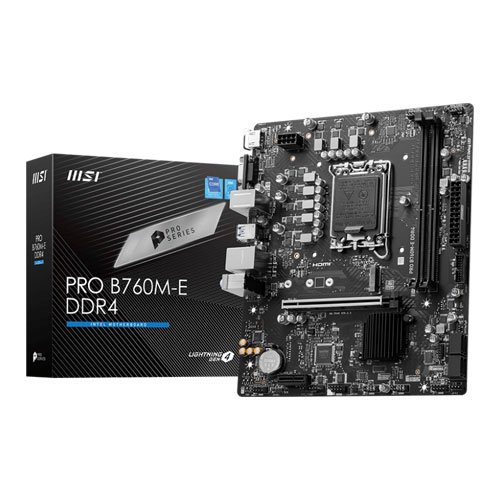

MSI PRO B760M E DDR4 MOTHERBOARD 911-7D48-061
LKR39,000.00
03 Years Warranty
Description
| CHIPSET | INTEL B760 | |
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors | |
| LGA 1700 | ||
| MEMORY | 2x DDR4, Maximum Memory Capacity 64GB | |
| Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) | ||
| Max. overclocking frequency: | ||
| • 1DPC 1R Max speed up to 4800+ MHz | ||
| • 1DPC 2R Max speed up to 4600+ MHz | ||
| Supports Dual-Channel mode | ||
| Supports non-ECC, un-buffered memory | ||
| Supports Intel® Extreme Memory Profile (XMP) | ||
| ONBOARD GRAPHICS | 1x HDMI™ | |
| Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* | ||
| 1x VGA | ||
| Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz | ||
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | ||
| EXPANSION SLOT | 1x PCI-E x16 slot | |
| 1x PCI-E x1 slot | ||
| PCI_E1 Gen PCIe 4.0 supports up to (From CPU) | ||
| PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) | ||
| STORAGE | 1x M.2 | |
| M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | ||
| 4x SATA 6G | ||
| * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. | ||
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |

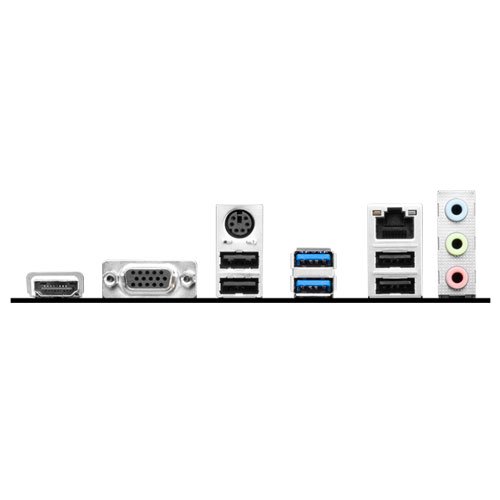

| USB | 4x USB 2.0 (Rear) | |
| 4x USB 2.0 (Front) | ||
| 2x USB 3.2 Gen1 Type A (Rear) | ||
| 2x USB 3.2 Gen1 Type A (Front) | ||
| LAN | Realtek® RTL8111H Gigabit LAN | |
| AUDIO | Realtek® ALC897 Codec | |
| 7.1-Channel High Definition Audio | ||
| INTERNAL I/O | 1x Power Connector(ATX_PWR) | |
| 1x Power Connector(CPU_PWR) | ||
| 1x CPU Fan | ||
| 2x System Fan | ||
| 2x Front Panel (JFP) | ||
| 1x Chassis Intrusion (JCI) | ||
| 1x Front Audio (JAUD) | ||
| 1x Com Port (JCOM) | ||
| 1x RGB LED connector(JRGB) | ||
| 1x TPM pin header(Support TPM 2.0) | ||
| 2x USB 2.0 ports | ||
| 1x USB 3.2 Gen1 Type A ports | ||
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
