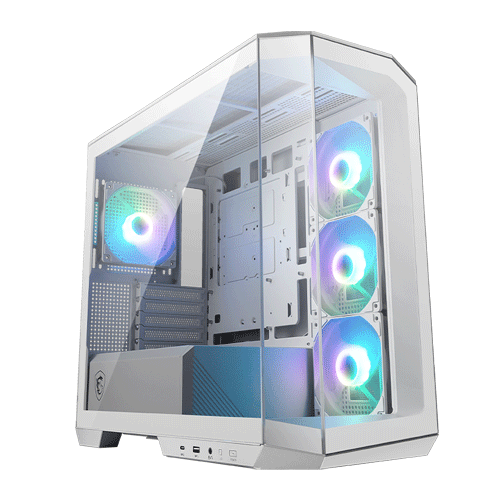

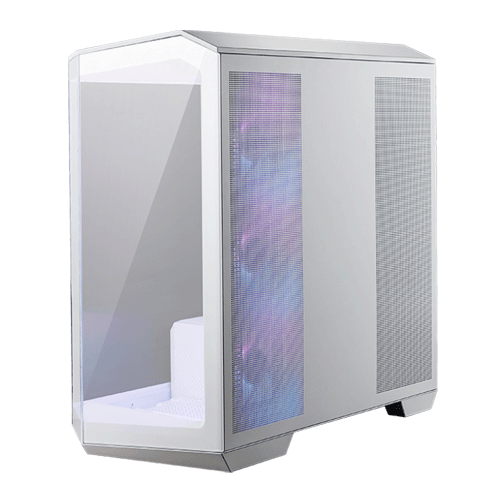

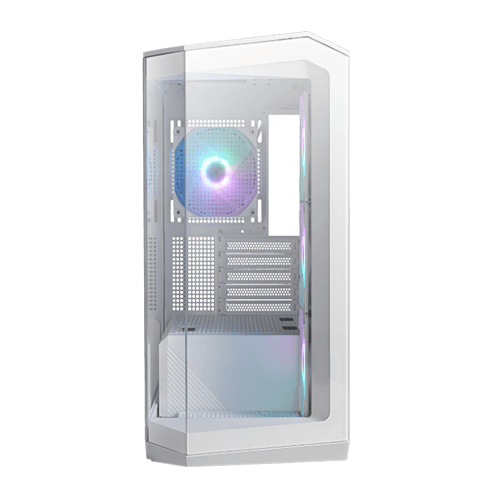

MSI MAG PANO M100R PZ WHITE CASE 306-7G24W28-HH9
LKR36,000.00
02 Years Warranty
Description
| Product Name | MAG PANO M100R PZ / WHITE | |
| Case Form Factor | Micro- ATX Tower | |
| Motherboard Form Factor Support | M-ATX(Back-connect supported) / ITX | |
| I/O Ports | 1 x USB 3.2 Gen 1 Type-A | |
| 1 x USB 3.2 Gen 2×2 Type-C | ||
| 1 x Audio-Out / Mic-in | ||
| 1 x LED Switch Button | ||
| 1 x Power Button | ||
| Drive Mount Support | 1 x 2.5” | |
| 1 x 2.5”/3.5” combo | ||
| (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) | ||
| Expansion Slots | 5 | |
| Maximum GPU Length | 390 mm / 15.35 inches | |
| *Support horizontal installation only. | ||
| Maximum CPU Cooler Height | 175 mm / 6.9 inches | |
| Power Supply Support | ATX | |
| Maximum PSU Length | 200 mm / 7.87 inches | |
| Fan Size Support | Top: 3 x 120 mm / 2 x 140 mm | |
| Front: NA | ||
| Rear: 1 x 120 mm / 1 x 140 mm | ||
| Side: 3 x 120 mm | ||
| Bottom: 1 x 120 mm | ||
| PSU Shroud: 2 x 120 mm | ||
| Pre-installed Fan Size | Side: 3 x 120 mm | |
| Rear: 1 x 120 mm | ||
| Pre-installed Fan Type | Side: 3 x ARGB Fan (Reverse-blade) | |
| Rear: 1 x ARGB Fan | ||
| Radiator Size Support | Top: 120 / 240 / 360 mm | |
| Front: NA | ||
| Rear: 120 / 140 mm | ||
| Side: NA | ||
| Bottom: NA | ||
| Dimensions (DxWxH) | 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches | |
| Net Weight | 8.66 kg | |
| Gross Weight | 11.29 kg |
