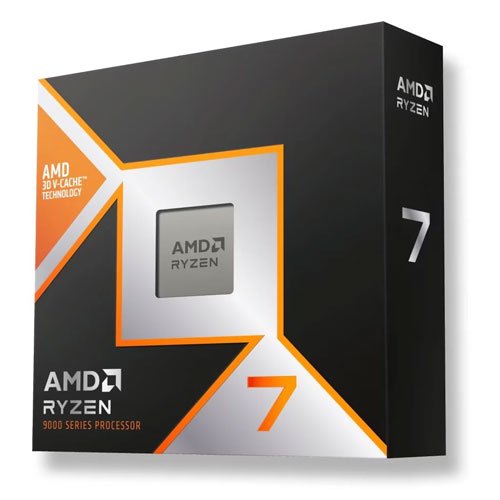

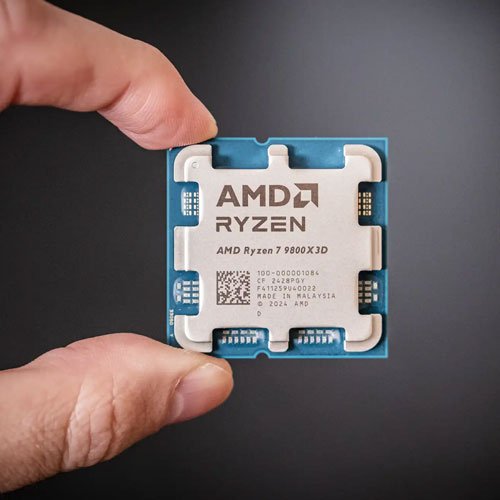

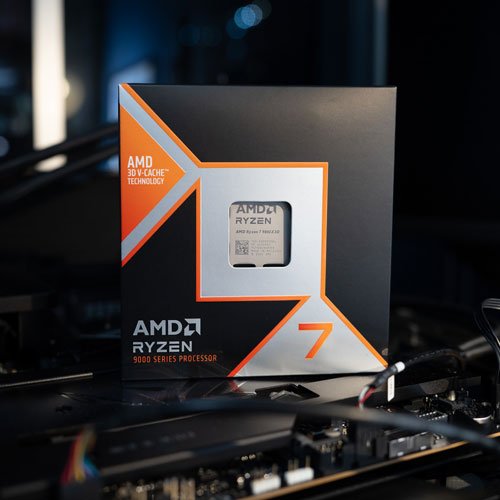

AMD RYZEN 7 9800X3D TRAY PROCESSOR 100-000001084
LKR150,000.00
03 Years Warranty
Description
| General Specifications | |||||||||
| Name | AMD Ryzen™ 7 9800X3D | ||||||||
| Family | Ryzen | ||||||||
| Series | Ryzen 9000 Series | ||||||||
| Form Factor | Desktops , Boxed Processor | ||||||||
| Market Segment | Enthusiast Desktop | ||||||||
| AMD PRO Technologies | No | ||||||||
| Consumer Use | Yes | ||||||||
| Regional Availability | Global | ||||||||
| Former Codename | Granite Ridge AM5 | ||||||||
| Architecture | Zen 5 | ||||||||
| # of CPU Cores | 8 | ||||||||
| Multithreading (SMT) | Yes | ||||||||
| # of Threads | 16 | ||||||||
| Max. Boost Clock | Up to 5.2 GHz | ||||||||
| Base Clock | 4.7 GHz | ||||||||
| L1 Cache | 640 KB | ||||||||
| L2 Cache | 8 MB | ||||||||
| L3 Cache | 96 MB | ||||||||
| Default TDP | 120W | ||||||||
| Processor Technology for CPU Cores | TSMC 4nm FinFET | ||||||||
| Processor Technology for I/O Die | TSMC 6nm FinFET | ||||||||
| Package Die Count | 2 | ||||||||
| Unlocked for Overclocking | Yes | ||||||||
| AMD EXPO™ Memory Overclocking Technology | Yes | ||||||||
| Precision Boost Overdrive | Yes | ||||||||
| Curve Optimizer Voltage Offsets | Yes | ||||||||
| AMD Ryzen™ Master Support | Yes | ||||||||
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 | ||||||||
| CPU Boost Technology | Precision Boost 2 | ||||||||
| Instruction Set | x86-64 | ||||||||
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 | ||||||||
| Thermal Solution (PIB) | Not Included | ||||||||
| Recommended Cooler | Liquid cooler recommended for optimal performance | ||||||||
| Max. Operating Temperature (Tjmax) | 95°C | ||||||||
| OS Support | Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit | ||||||||
| Connectivity | |||||||||
| Native USB 3.2 Gen 2 (10Gbps) | 4 | ||||||||
| Native USB 2.0 (480Mbps) | 1 | ||||||||
| PCI Express® Version | PCIe® 5.0 | ||||||||
| Native PCIe® Lanes (Total/Usable) | 28 , 24 | ||||||||
| NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 | ||||||||
| System Memory Type | DDR5 | ||||||||
| Memory Channels | 2 | ||||||||
| Max. Memory | 192 GB | ||||||||
| System Memory Subtype | UDIMM | ||||||||
| Max Memory Speed | 2x1R | DDR5-5600 | |||||||
| 2x2R | DDR5-5600 | ||||||||
| 4x1R | DDR5-3600 | ||||||||
| 4x2R | DDR5-3600 | ||||||||
| ECC Support | Yes (Requires mobo support) | ||||||||
| Graphics Capabilities | |||||||||
| Graphics Model | AMD Radeon™ Graphics | ||||||||
| Graphics Core Count | 2 | ||||||||
| Graphics Frequency | 2200 MHz | ||||||||
| USB Type-C® DisplayPort™ Alternate Mode | Yes | ||||||||
| Key Features | |||||||||
| Supported Technologies | AMD EXPO™ Technology , AMD Ryzen™ Technologies | ||||||||
| Product IDs | |||||||||
| Product IDs | 100-100001084WOF | ||||||||
| Product ID Tray | 100-000001084 | ||||||||
