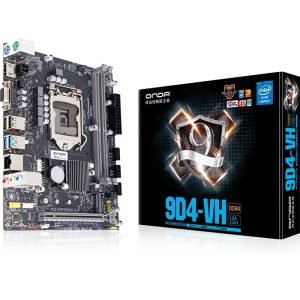

ONDA 9D4-VH
-
Applicable CPU interfaceLGA 1151 (supports 6789 generation processors)
-
Commodity originChinese mainland
-
PCIE 4.0Does not support PCIE4.0
-
lighting effectnot RGB
- characteristic
-
Application scenariosHome/Office
-
Game Featuresother
- Memory
-
Memory SpecificationsDDR4
-
memory frequencyDDR4 2133; DDR4 2200; DDR4 2400; DDR4 2666
-
memory slot2 x ddr4 memory slots
-
Maximum memory capacity32GB
- chipset
-
INTEL chipB250
-
Integrated Graphicsno
- Support CPU
-
Compatible seriesSupport Intel LGA1151 socket, support all series 6789 generation
- Expansion PCI
-
PCI Express x161
-
PCI Express x10
-
PCI slot0
- storage device
-
IDEnone
-
SATA3
-
RAID supportother
-
SSD solid state drive interfaceSATA interface, M.2 interface (NVMe protocol), M.2 interface (SATA bus)
- Onboard sound card
-
sound card typeRealtek ALC887
-
number of channels5.1 channel
- Onboard network card
-
maximum network speed10M/100M
-
Wireless network cardWiFi is not supported
- Onboard interface
-
Number of M.2 ports1
-
USB expansion interface3 groups
-
COM extension interfaceGroup 1
-
System Fan SocketGroup 1
- rear interface
-
PS/21 x PS/2 keyboard port, 1 x PS/2 mouse port
-
HDMI interface1 x HDMI port
-
RJ 45 network interface1 x RJ45 port
-
USB4 x USB ports
-
audio port3 x 3.5mm connectors
- Physical Specifications
-
plate typeM-ATX (Compact)
-
Power interface24+4
-
plate size196x168(mm)1 Year Warranty

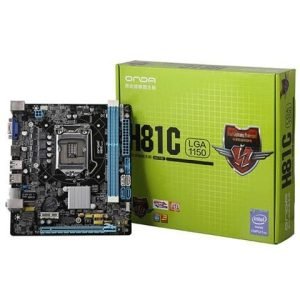

ONDA H81C
- Main body H81C (Ver:5.0)
- Platform LGA 1150
- Chipset Intel H81
- CPU pin 1150 pin
- Memory slot 2 x ddr3 memory slot
- Memory standard DDR3 1066/1333/1600MHz Non-ECC memory
- Maximum memory capacity 16GB
- SATA 4 SATA ports
- Network type 10/100M network card
- Audio interface 3 x 3.5mm interface
- Video interface 1 x HDMI interface, 1 x VGA interface
- PCB specifications
- Network card specification 10M/100M
- USB expansion interface 1 built-in USB3.0 plug, expandable 2 USB3.0 interfaces, 1 built-in USB2.0 connector, expandable 2 USB2.0 4 USB2.0 interfaces
- Number of fan ports 2
- Board size M-ATX
- Power interface 24+4
- Other sockets 1 x PS/2 keyboard interface, 1 x PS/2 mouse interface 1 x RJ45 interface
- Graphics slot 1 x PCI Express x16 1 Year Warranty
