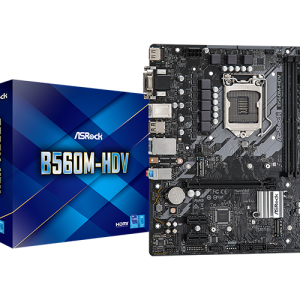

ASROCK B560M-HDV
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 5000MHz (OC)
- 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4) 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front) 6 x USB 2.0 (2 x Rear, 4 x Front)
- Intel® Gigabit LAN 2 Years Warranty

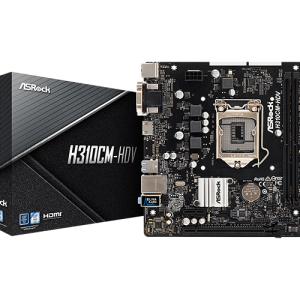

ASROCK H310CM-HDV

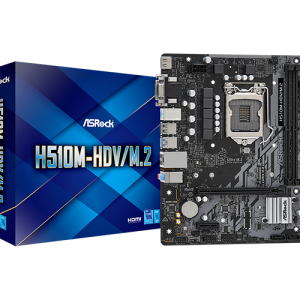

ASROCK H510M-HDV/M.2
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 3200MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front) 6 x USB 2.0 (4 x Rear, 2 x Front)
- Intel® Gigabit LAN 2 Years Warranty
ONDA 9D4-VH
- Applicable CPU interfaceLGA 1151 (supports 6789 generation processors)
- Commodity originChinese mainland
- PCIE 4.0Does not support PCIE4.0
- lighting effectnot RGB
- characteristic
- Application scenariosHome/Office
- Game Featuresother
- Memory
- Memory SpecificationsDDR4
- memory frequencyDDR4 2133; DDR4 2200; DDR4 2400; DDR4 2666
- memory slot2 x ddr4 memory slots
- Maximum memory capacity32GB
- chipset
- INTEL chipB250
- Integrated Graphicsno
- Support CPU
- Compatible seriesSupport Intel LGA1151 socket, support all series 6789 generation
- Expansion PCI
- PCI Express x161
- PCI Express x10
- PCI slot0
- storage device
- IDEnone
- SATA3
- RAID supportother
- SSD solid state drive interfaceSATA interface, M.2 interface (NVMe protocol), M.2 interface (SATA bus)
- Onboard sound card
- sound card typeRealtek ALC887
- number of channels5.1 channel
- Onboard network card
- maximum network speed10M/100M
- Wireless network cardWiFi is not supported
- Onboard interface
- Number of M.2 ports1
- USB expansion interface3 groups
- COM extension interfaceGroup 1
- System Fan SocketGroup 1
- rear interface
- PS/21 x PS/2 keyboard port, 1 x PS/2 mouse port
- HDMI interface1 x HDMI port
- RJ 45 network interface1 x RJ45 port
- USB4 x USB ports
- audio port3 x 3.5mm connectors
- Physical Specifications
- plate typeM-ATX (Compact)
- Power interface24+4
- plate size196x168(mm)1 Year Warranty
ONDA H81C
- Main body H81C (Ver:5.0)
- Platform LGA 1150
- Chipset Intel H81
- CPU pin 1150 pin
- Memory slot 2 x ddr3 memory slot
- Memory standard DDR3 1066/1333/1600MHz Non-ECC memory
- Maximum memory capacity 16GB
- SATA 4 SATA ports
- Network type 10/100M network card
- Audio interface 3 x 3.5mm interface
- Video interface 1 x HDMI interface, 1 x VGA interface
- PCB specifications
- Network card specification 10M/100M
- USB expansion interface 1 built-in USB3.0 plug, expandable 2 USB3.0 interfaces, 1 built-in USB2.0 connector, expandable 2 USB2.0 4 USB2.0 interfaces
- Number of fan ports 2
- Board size M-ATX
- Power interface 24+4
- Other sockets 1 x PS/2 keyboard interface, 1 x PS/2 mouse interface 1 x RJ45 interface
- Graphics slot 1 x PCI Express x16 1 Year Warranty
